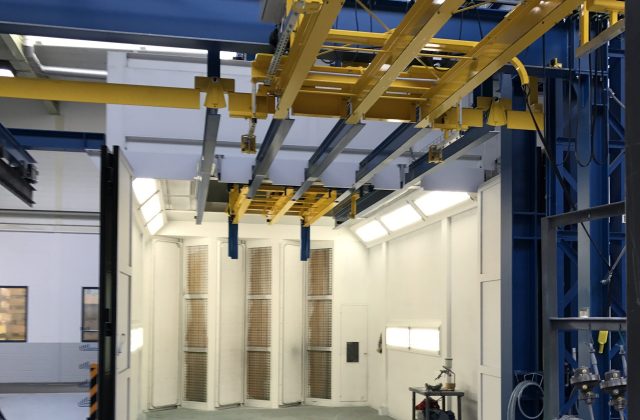

Full flexibility:With spacious interiors and zone-controlled air supply and exhaust systems, we address all customer needs with maximum flexibility. Optimized workflow:Thanks to its multifunctional capabilities, large workpieces can be washed, dried, painted, and force-dried in one position, eliminating the need for part movement. Maintenance-friendly:Even the largest booths are designed for optimal maintenance accessibility, ensuring ease of operation and minimal downtime. Compliance:These cabins from e. Luterbach ag are also designed in accordance with the current en standards. Energy efficiency:Energy efficiency innovations are pivotal for reducing operating costs, even in oversized applications. Heavy-duty capacity:Heavy loads can be safely and precisely prepared for the painting process with advanced conveyor and handling systems. Fast switchover:Switching between modes can be completed in just minutes, thanks to our specialized dual filtration system.Technical data:Core functions:– High-pressure washing– Flash-drying– Painting– Flash-off– Paint drying– StandbyCore components:– Fans – Filtration systems– Heating systems– Heat recovery systems– Humidification systems– Cooling / dehumidification systems– Cleaning equipmentMaterials:Galvanized steelPainted steelStainless steel (1.4307 and 1.4404)Plastics (e.g., PPs)Airflow rates:2,000 – 260,000 m³/hTemperature range: Up to 60°CFiltration systems:– Coarse dust filter ISO coarse 40% (G3)– Machine protection filter ISO ePM10 50% (M6)– Fine filter ISO ePM1 70%– HEPA filter up to H14– Air scrubberHeating options:– Electric– Heating water– Gas (direct/indirect)– Oil (indirect)– Thermal oilHeat recovery systems:– Static plate heat exchangers (up to 65% efficiency)– Rotary heat exchangers (up to 85% efficiency)– Sorption regenerators (up to 85% efficiency, including latent heat/moisture recovery)– KVS systems (up to 45% efficiency)– Heat pumpsHumidification options:– High-pressure humidification with osmosis water– Ultrasonic atomization– Steam humidification
